The practical detail, laid out for comparison and installation planning rather than hidden behind a tab.
Information
Designed for Fast Installation – Securely mounts framed solar panels to aluminium mounting rails using a simple M8 fastening system, reducing installation time while providing a strong, reliable connection.
Universal Compatibility – Suitable for 30–35 mm solar panel frames and compatible with most standard aluminium solar mounting rails used on residential, commercial, RV, caravan, marine, and off-grid installations.

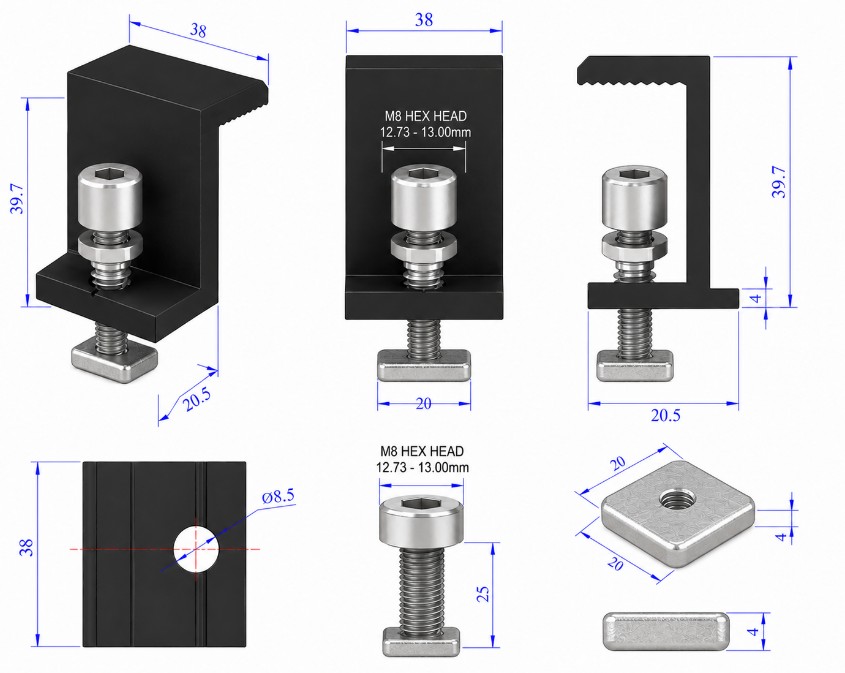

c – Precision-formed 38 mm wide Z-clamp distributes clamping force evenly across the panel frame while the serrated gripping surface helps prevent movement under vibration and wind loads.
Premium Materials – Manufactured from AL6005-T5 anodised aluminium for excellent corrosion resistance, paired with a 304 stainless steel M8 × 25 hex socket bolt and galvanised steel channel nut for long-term outdoor durability.
Secure Rail Connection – Includes a 20 × 20 × 4 mm rounded-edge channel nut designed to slide smoothly into compatible mounting rails, ensuring a secure and reusable fixing point.
Built for Harsh Environments – UV resistant, corrosion resistant, and weatherproof, making it ideal for coastal, high-temperature, and demanding Australian conditions.
Complete Mounting Kit – Each clamp includes 1 × Z aluminium clamp, 1 × M8 × 25 stainless steel socket head bolt, spring washer, flat washer, hex nut, and galvanised channel nut, ready for installation.
Wide Range of Applications – Perfect for solar installations on homes, sheds, caravans, motorhomes, 4WDs, boats, commercial buildings, and off-grid power systems.
Package Content
4 Bracket 4 Channel Nut 4 Washer 4 Spring Washer 4 M8 x 1.25p x 35mm Full Thread Metric Coarse Socket Head Cap Screw (6mm Key) A2-70 Stainless G304 DIN 912 / ISO 4762
Specifications
Category/ies
Accessories
Brand
Ozroofracks
Google Taxonomy
Vehicles & Parts > Vehicle Parts & Accessories > Vehicle Storage & Cargo
Tariff (HTS Code)
761699
Material
Aluminium
Attachment Type
Clamp Mount
Weight (per unit)
0.04 kg
Length
4 cm
Width / Depth
4 cm
Height
4 cm
Shipping
Ships as
1 parcel for 4x OZ30
Package
Auto: oz30
Package size
4 ×
4 ×
4 cm
Fits per package
50
Total shipment weight
0.16 kg
